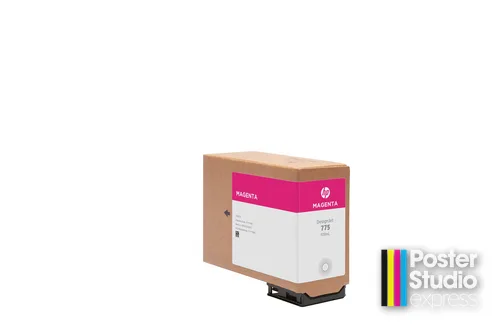

HP 775 500-ml Magenta DesignJet Ink Cartridge (1XB18A)

Which printers take this part?

Fitment is narrow: the Z6 series, 24-in through Z6 Pro. In the PSE range that is the Education Studio 64 Pro. Nothing in HP’s T-series appears on the list for 1XB18A, nor does the Z9⁺ range, which HP supplies from its own 776 parts.

• HP DesignJet Z6 series (24-in / 44-in / Z6dr / Z6 Pro)

Check which ink your printer takes · All genuine HP DesignJet ink & printheads

What magenta does in the 775 set

Magenta is the second process ink, and the shape of the set is worth a sentence. The 775 range for this machine runs six colors with one magenta — no light magenta; the sixth color here is chromatic red. The Z9⁺ range runs wider, adding gray, chromatic blue and chromatic green, plus a gloss enhancer that is a clear coat rather than a color. None of those four has an HP 775 part, which is why a Studio 64 Pro runs six bays.

Size and cost per milliliter

Five hundred milliliters at $272.95 is $546 a liter. The Z6 series also takes HP’s 746 magenta in 300 ml — part P2V78A, $198.95, or $663 a liter. That is a different HP supply range, not a smaller 1XB18A, but on a Z6 it is the other way to buy magenta, and it costs 21% more per milliliter. The 500-ml tank is the cheaper route by 18%.

Don’t order this by mistake

The 1-liter magenta is 1XB07A, eleven numbers below this one, and 1XB08A is yellow. Neither fits a Z6. The catch is not only the platform: color order differs between the two runs. Here 17, 18 and 19 are cyan, magenta and yellow; the 1-liter run opens 07 magenta, 08 yellow, 09 cyan. A number copied off an old invoice will not translate to this shelf.

Specifications

Other colors in this range: Cyan 1XB17A, Yellow 1XB19A, Chromatic Red 1XB20A, Photo Black 1XB21A, Matte Black 1XB22A.

Questions schools ask about this cartridge

We reorder by PSI775M. Is that this cartridge?

It is. PSI775M is the Poster Studio Express order code for the 500-ml HP 775 magenta; 1XB18A is HP’s own number for the same tank.

How many cartridges does a Studio 64 Pro take?

Six — one per color — if you replace them all at once. Most schools change a single bay as the front panel calls for it, which is why each color has its own part number.

Is this the same ink as the 1-liter cartridges?

Same color name, different HP range. The 1-liter tanks are 776 parts, which HP lists for the Z9⁺ (Z9+) series. We will not call them interchangeable, because HP’s compatibility list does not.

Ordering

Free shipping and school POs on every ink order. Genuine HP part, supplied by an HP Partner.

Not sure which part fits your machine? Call 866-788-7900 or see all genuine HP parts by number.
